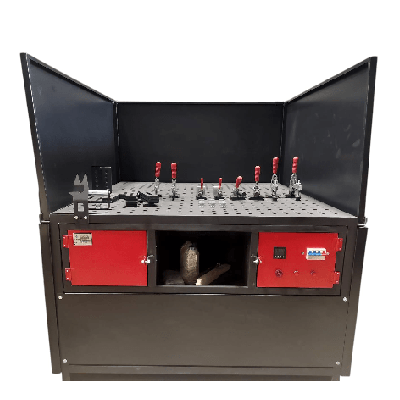

Arc Welding Table

Arc Welding Table

Arc Welding Table with Positioner (Arc All Metal Top with Positioner 1200 X 1200 X 750 mm)

Features :

  • Welding Fume / dust extraction table,
  • Cartridge filter,
  • Automatic Filter cleaning system with timer controller and control panel.
  • All panels powder coated and colored with good quality paint.
  • Air blower and compressor is fitted inside the table.

Technical Specifications :

  • Arc Welding table size: 1200 x 1200 x750 mm (L x W x H) with M.S. structure.
  • Welding Table Top: High grade thick M.S. material with 16 mm holes in Grid form of 50 mm x 50 mm
  • M.S. structure: M.S. angle of 35 x 35 x 5 mm.
  • Welding Table provided with lockable toll box.
  • Arc welding table provided with welding partition mounted on TOP of the table having removable frame on three sides of the Table with Partition height of 620 mm.
  • Suitable GTAW, GMAW welding Gun Holder provided with the table.
  • Welding Table supplied with suitable KIT of Jigs/Fixtures / Clamps (Clamping and Holding Kit) for welding of different jobs like
    1. Square Tube Framing
    2. Round Tube Framing
    3. I-Beam Framing
    4. Sheet metal Box welding
    5. LAP joint position
    6. Butt joint position
    7. T-joint position.
  • To make above mentioned different type of welding jobs a KIT to be supplied to make one JOB at a time. Kit contain various required clamps and accessories set, minimum 20 nos. to make the above JOB.
  • All the Jigs / Fixtures / Clamps can be insert into any hole on the table for quick and accurate Holding and mounting the job on the table.

Accessories :

  • Cleaning brush
  • Spanner set
  • Allen key set
  • Anti-spatter liquid 1 liter

Extra Optional Components and accessories listed as per below can also be supplied as per the buyer requirement.

  • Overhead Welding Fume / dust extraction
  • Timer Controller
  • Jigs/Fixtures / Clamps extra quantity.

Pre-Installation Advice:

  • Floor Area Requirement: 7 ft. x 7 ft.
  • Electrical Supply Requirement: 1 No. 3 Phase 16 Amp. Power Supply Connection Required
  • 1 No. Single Phase, 5 Amp. Power Supply Connection Required
