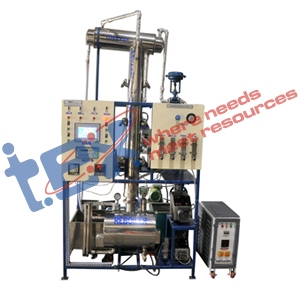

Packed Bed Continuous Distillation Column
Overview – Continuous Distillation Column Educational Setup
The Packed Bed Continuous Distillation Column trainer is a specialized chemical engineering lab equipment designed to study the principles of continuous distillation. It demonstrates mass transfer operations in a packed column, where liquid and vapor phases come in contact for separation of a binary mixture.
This continuous distillation column educational setup is widely used in Engineering Colleges, ITIs, and Research Centers to provide students with hands-on experience in analyzing distillation efficiency, column performance, and operating parameters.
Product Description – Packed Bed Distillation Column Lab Equipment
The packed bed continuous distillation experimental setup consists of a vertical column filled with suitable packing material to enhance surface area for mass transfer. It includes feed tank, reboiler, condenser, receiver tanks, heating system, and instrumentation panel for precise monitoring of process conditions.
Built for long-term use, the packed bed distillation column trainer helps learners understand concepts such as reflux ratio, column efficiency, and temperature distribution along the column. The setup replicates real industrial operations, making it an essential teaching and research tool.
Key Features – Packed Bed Distillation Demonstration Unit
- Complete distillation column trainer kit for Engineering Colleges, ITIs, and Research Centers.
- Transparent packed column for effective observation of phase interaction.
- Digital instruments for monitoring temperature, pressure, and flow rate.
- Efficient heating and cooling systems for controlled operation.
- Safe and durable construction for repeated lab experiments.
- Helps in studying mass transfer coefficients, reflux ratio, and efficiency.
Technical Specifications – Packed Bed Distillation Column Experimental Setup
| Specification | Details |
|---|---|
| Power Supply | 230V AC, 50Hz |
| Column Type | Packed column with suitable packing |
| Heating System | Electrical heater with controlled energy input |
| Condenser | Water-cooled condenser with receiver tanks |
| Reboiler | Stainless steel reboiler |
| Measuring Instruments | Digital temperature indicators, Rotameters, Temp. Sensors (Thermocouple & RTD type) |
| Feed & Product Collection | SS/MS tanks for feed, distillate, and residue |
| Frame Construction | MS powder-coated frame with safety features |
Applications – Continuous Distillation Column Trainer
- Study of continuous distillation process in a packed column.
- Performance analysis of packed bed distillation apparatus.
- Hands-on experiments for Engineering Colleges, ITIs, and Research Centers.
- Investigation of reflux ratio, distillation efficiency, and heat balance.
- Research applications in chemical, petrochemical, and pharmaceutical industries.
- Demonstration of mass transfer principles in academic laboratories.
Why Choose Our Packed Bed Continuous Distillation Column?
Our packed bed distillation column lab equipment is designed with precision to meet educational and research requirements. It provides accurate experimental results, robust construction, and user-friendly operation.
Trusted by Engineering Colleges, ITIs, and Research Centers, this continuous distillation trainer is an essential tool for studying real-world separation processes and mass transfer operations.
Note: Also available in Fully Automatic System with PLC, SCADA, HMI and Computer.
