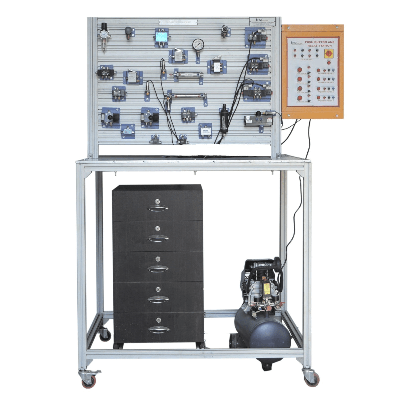

Pneumatic Trainer kit Consisting of Compressor Unit, Pneumatic matching component and accessories, Power supply unit, Pneumatic Workstation with Pneumatic Components in working Condition, Carrier for mounting components such as PB & relay box, and cut section model of pneumatic components.

1. Pneumatic Trainer Kit, each consisting of the following machine components and accessories -

• Single acting cylinder Max. stroke length 50-100 mm, Bore diameter 20-32 mm : 1 No
• Double acting cylinder Max. stroke length 100-125 mm, Bore diameter 20-32 mm, magnetic type : 1 No
• 3/2-way valve manually-actuated, Normally Closed : 2 Nos
• 3/2-way valve pneumatically-actuated, spring return : 1 No
• One-way flow control valve : 2 Nos
• 5/2-way valve with manually-operated switch : 1 No
• 5/2-way valve pneumatically-actuated, spring return : 1 No
• 5/2-way pneumatic actuated valve double pilot : 1 No
• 3/2 position palm operated valve : 1 No
• 3/2-way roller lever valve direct actuation Normally Closed : 2 Nos
• Shuttle valve (OR) : 1 No
• Two-pressure valve (AND) : 1 No
• Air filter Regulator : 1 No
• Pressure gauge 0-16 bar : 1 Nos
• Manifold with self-closing NRV, 6-way : 1 No
• 5/2-way roller lever valve direct actuation Normally Closed : 1 Nos
• Proximity sensor : 4 No
• Exhaust silencer : 5 No
• Push button station for electrical signal input with 3 illuminated momentary-contact switches (1 NO + 1 NC) and 1 illuminated maintained-contact switch (1 NO + 1 NC), Contact load 2A 1 No
• Relay station with 3 relays each with 4 contact sets (3NO+1NC or Change-over type), 5 A : 1 No
• 3/2-way single solenoid valve with LED : 1 No
• 5/2-way single solenoid valve with manual override and LED : 1 No
• 5/2-way double solenoid valve with manual override and LED : 1 No
• Pneumatic Rotary actuator 180 Deg movement. : 1 No
• Pneumatic Motor with minimum RPM 20000 or More : 1 No
• Power supply unit, Input voltage 85 - 265 V AC, Output voltage : 24 V DC,
• short-circuit-proof. : 1 No
• Rod less cylinder : 1No
• Rotary Actuator : 1No
• PLC with Communication Operating Voltage : 24 VDC / 230 VAC
• Programming Cable : 1No

All above components are in working condition to understand design and working principal of pneumatic components and circuits.

Every pneumatic component having pneumatic push pull connector on it so that it can perform various pneumatic circuits with different connections.

Simulation software provided to understand working principal of pneumatic components, its symbols and circuits.

2. Pneumatic Workstation with 40 square mm aluminium profile legs, wooden work surface, and one pedestal drawer unit having 5 drawers, each with handles and individual locks, on metallic full panel drawer slide:

• Work Table - Size (Approx.) L-1200 mm X W-900mm X H-900 mm with four castor wheels including two lockable wheels at the front side. Aluminium profile leg 40 mm-sq. wooden work surface. One pedestal drawer & five drawers with handle and locks. Vertical Profile plate Anodized Aluminium 1100x700 mm with carriers mounting frames and mounting accessories (To be fitted on side of the pneumatic workstation) and component can be easily removable when it needs to remove from profile plate using allen key.
• Drawer - Size (Approx.) - L460mmxW495mm xH158mm each and overall size of Drawer unit. (Approx.) - L-470 mmxW-495mmxH-825mm.
• Drawer slide height (Approx.) 85 mm.

3. Carrier for mounting components, such as PB & relay box (Pushbutton, Relays, Terminals, Switch, Power supply, PLC mounted in single MS powder coated box).

4. List of Cut section Pneumatic components :

• Single acting cylinder Max. stroke length 50 mm, Bore dia 20 mm: 1 No
• Double acting cylinder Max. stroke length 100 mm, Bore dia 20 mm, magnetic type: 1 No
• 5/2-way pneumatic actuated valve double pilot: 1 No
• 3/2-way roller lever valve direct actuation Normally closed: 1 No
• Shuttle Valve (OR): 1 No
• Pressure gauge: 1 No
• Manifold 6-way: 1 No
• 3/2-way single solenoid valve with LED: 1 No
• 5/2-way double solenoid valve with manual override and LED: 1 No

Pneumatic Trainer with Tool Kit to fitting of pneumatic components, & Assorted PU pipe provided with suitable size and length to conduct the experiments.

5. Compressor Unit

• Type : Belt Driven or Direct Driven.
• Stage : Single stage
• Capacity : 24 litre minimum
• Motor : 0.5 HP minimum
• Working Pressure : 08 BAR minimum
• Power supply : 230 VAC
• Pressure gauge, safety valve, Air control valve, Drain valve, Water separator & pressure switch
• Fitted on compressor

Extra Optional Components and accessories listed as per below can also be supplied as per the buyer requirement.

• Software Tool for Programming PLC
• Computer System
• UPS
• Push pull Connectors suitable to PU pipe 6*4 mm and 1/8” or ¼” BSP male/female thread size
• PU pipe 6*4 mm

Pre-Installation Advice:

• Floor Area Requirement: 7 ft. x 5 ft.
• Electrical Supply Requirement: 2 Nos. - 3 Pin Socket, 230 V AC, 10 Amp.
